TactiFrame Carbon Fiber Plates

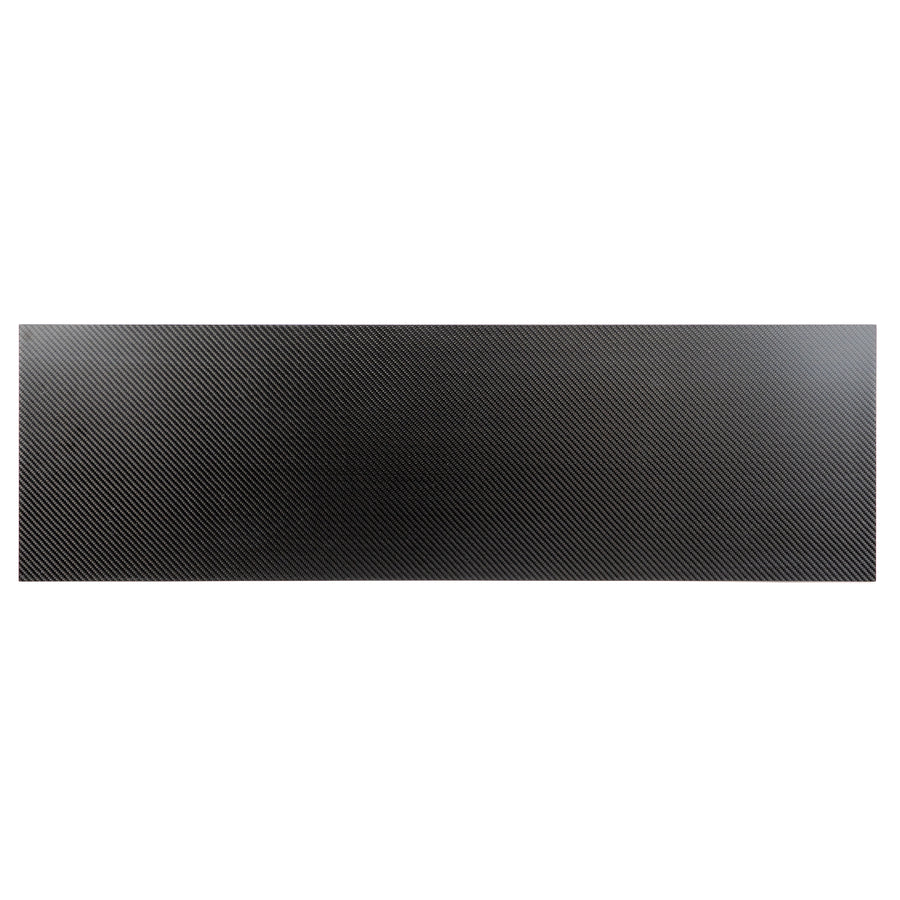

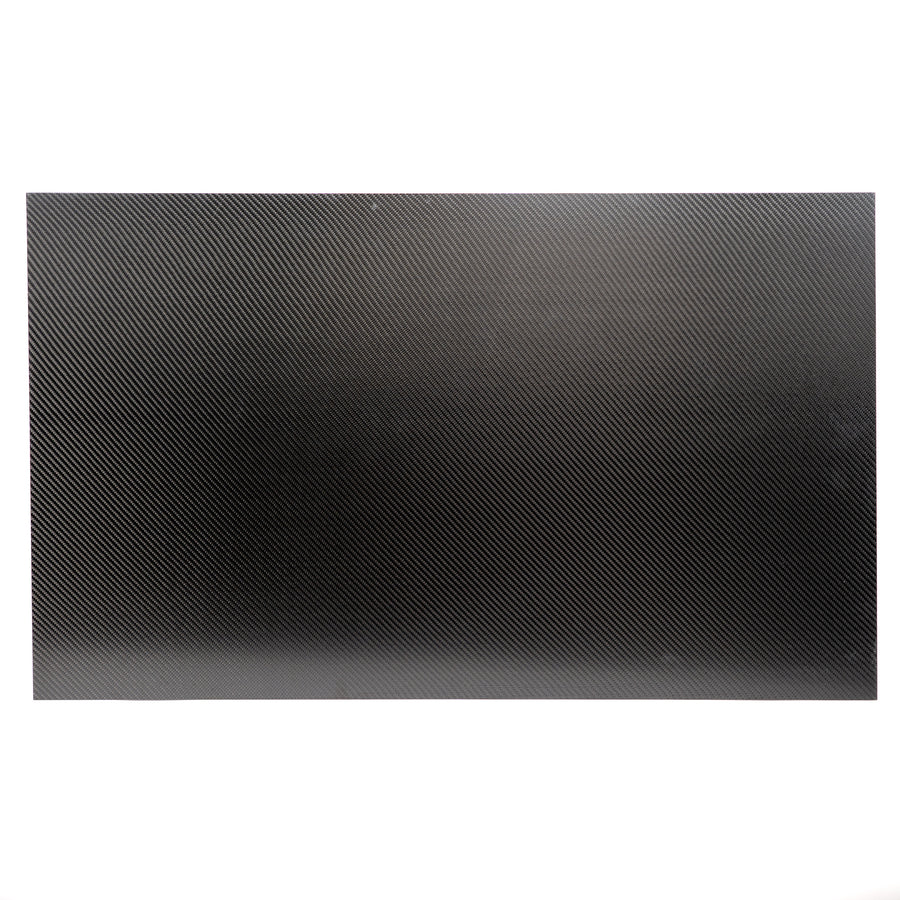

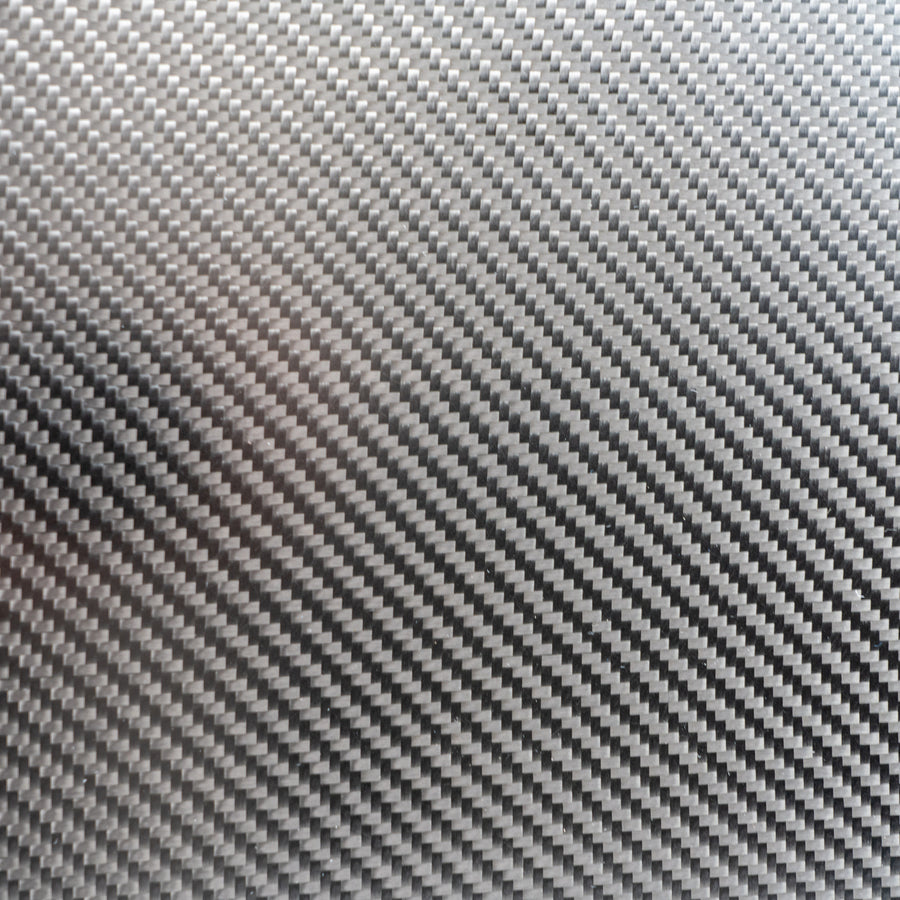

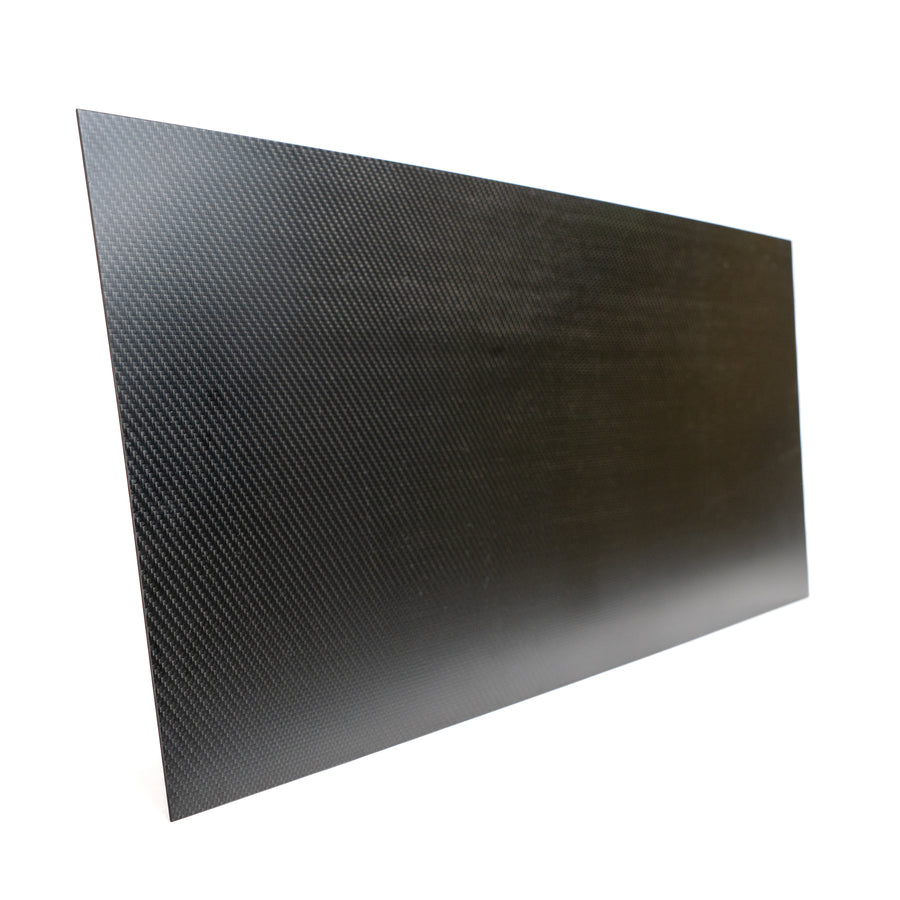

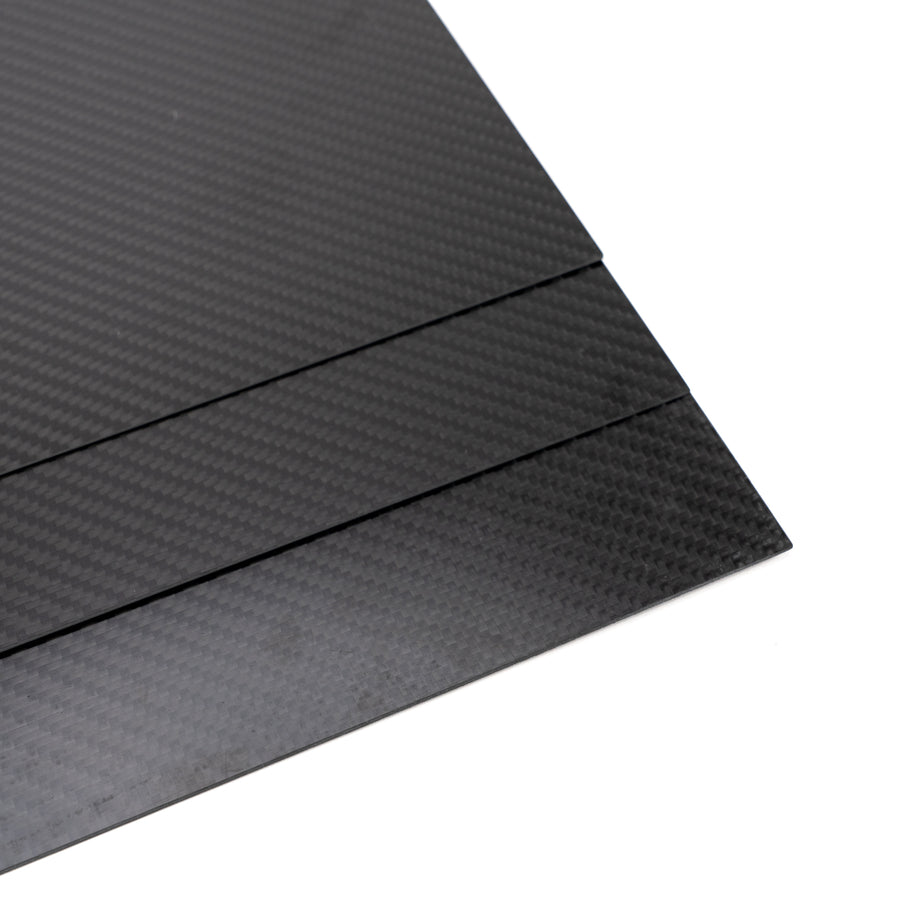

TactiFrame Carbon Fiber Plates are rigid flat panels produced from the same woven carbon fiber material used in TactiFrame poles: 3450 MPa tensile strength, 230 GPa Young's Modulus, 1.80 g/cm³ density. A flat panel form factor for applications requiring a structural surface rather than a structural span.

Every plate is produced to order. Specify any dimension from 1 inch to 40 inches in length or width, thickness up to 1 cm, in a glossy woven carbon fiber finish. Cutout configurations are available within the same order: hole patterns for hardware mounting, port cutouts for cable routing or ventilation access, custom geometric cutouts for sensor or connector interfaces. Single-unit orders are accepted with no minimum quantity.

Within TactiFrame frame assemblies, plates are mounted via saddle mounts and hook mounts as panel faces, equipment platforms, or overhead mounting surfaces. Plates also function as standalone flat stock independent of any TactiFrame frame assembly.

Highlights

• Material. Woven carbon fiber, same specification as TactiFrame poles. 3450 MPa tensile strength, 230 GPa Young's Modulus, glossy surface finish.
• Configurable dimensions. Length 1 in to 40 in, width 1 in to 40 in, thickness up to 1 cm.
• Cutout options. Hole patterns, port cutouts, custom geometric cutouts, and edge profiles, specified at time of order.
• Order parameters. SKU MDTF-CARBON-PLATE-CUSTOM. Single-unit orders accepted, no minimum quantity.

Material properties

Configuration parameters

Cutout options

Within TactiFrame frame assemblies

• Panel faces: plates cut to bay dimensions and mounted across open frame bays as rigid inserts or non-fabric-covered surfaces within an enclosure
• Equipment mounting platforms: plates sized to specific equipment footprints and mounted at defined heights within the frame via saddle mounts
• Overhead mounting surfaces: horizontal plates at frame top for cable management, sensor hardware, and overhead-mounted equipment
• Structural inserts: rigid panel members within frame bays under concentrated load

Standalone applications

• Precision flat stock for engineering, prototyping, and fabrication applications where weight is a design constraint
• Custom-dimensioned mounting plates for equipment installations
• Structural inserts for composite assemblies

Cutout applications

• Cable routing ports through enclosure panel faces
• SMA, BNC, or custom connector pass-throughs in equipment mounting plates
• Ventilation patterns in non-shielded enclosure faces
• Hardware mounting hole patterns matching standard equipment interfaces
